Connecting an XR5000 Tru-test indicator to Te Pari Loadbars
Instructions:
- Connect bars and indicator, and switch on the XR5000; it should be on the Home screen.

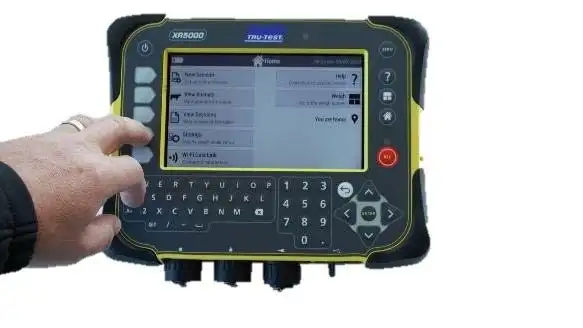

2. From the home screen, select Settings.

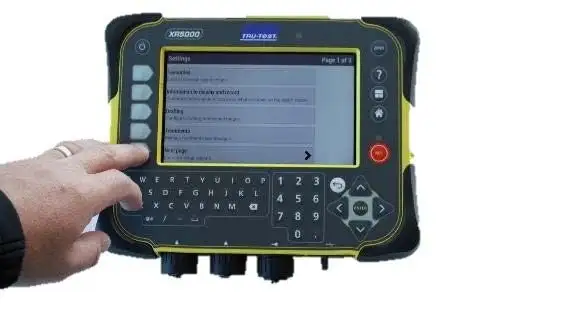

3. Select Next Page, click twice to scroll through 2 pages.

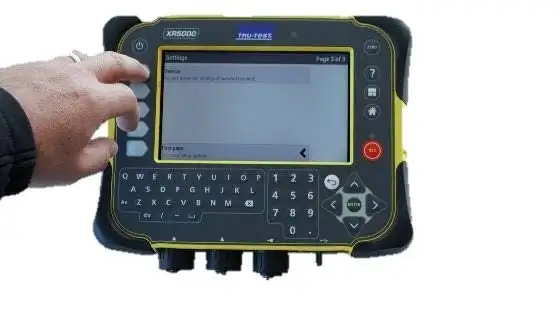

4. Select Service.

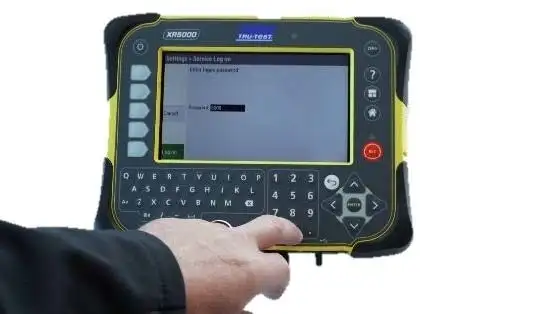

5. Enter password: 5000 and then press Login.

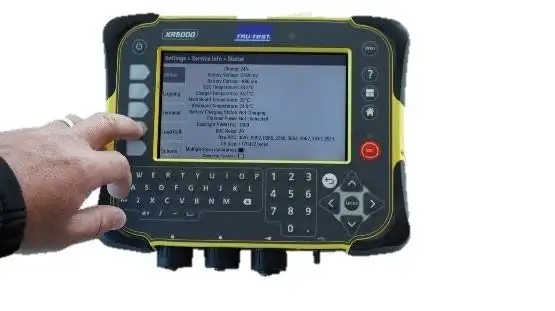

6. Select Loadcell.
#
XR5000 Capacity and Sensitivity Setting Table
| Te Pari Loadbars or Integrated Loadcells | |
|---|---|
| T4000 HD galvanised bars or Titan Crush with integrated loadcells | Capacity: 4000kg | Sensitivity: 1.000mvv |
| T6000 galvanised bars (600mm) | Capacity: 2000kg | Sensitivity: 3.000mvv |
| Te Pari Racewell DR3 Drafter Loadcells | Capacity: 1000kg | Sensitivity: 3.000mvv |
| Silencer Overhead Loadcells T6000 | Capacity: 6800kg | Sensitivity: 0.800mvv |
| OLD GENERATION LOADBARS | |
| ISL3000 (red top HD bar) | Capacity: 3000kg | Sensitivity: 0.995mvv |
| ISL600 (red top bar) | Capacity: 2000kg | Sensitivity: 1.325mvv |
7. Once you have selected the correct Capacity and Sensitivity for your product, you can proceed to the Home screen and select what you want to do.
